Built by the well known Turkish shipyard Bilgin Yachts and designed by renowned H2 Yacht Design, the Bilgin 132 motor yacht M (Project M) is a 40m beautiful vessel, featuring striking modern lines as well as aggressive look thanks to her vertical plumb style bow. The Bilgin 132 M superyacht was successfully launched last month.

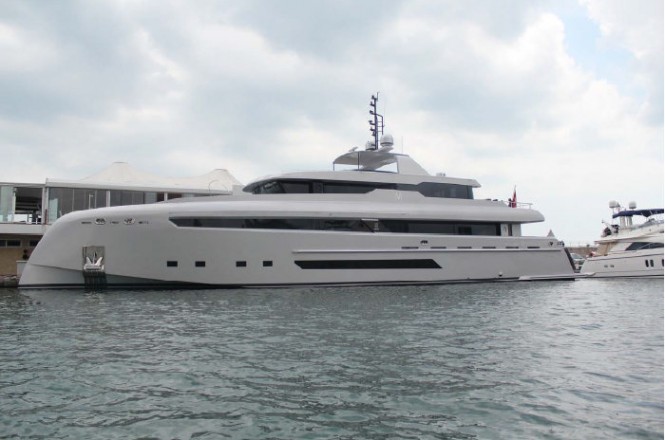

Bilgin 132 motor yacht M (Project M) by Bilgin Yachts
Dimensions & Main Characteristics of the Bilgin 132 luxury yacht M
Length over all : 132’ (40m)
Beam max : 27’ 8” (8.50m)
Draft at Half Load : 6’ 2” (1.90m)
Full Load Displacement : 195 mt.
Fuel tank capacity : 20.000 lt.
Fresh water capacity : 3.500 lt.
Grey & Black water capacity : 3.000 lt.
Accommodation : Sleeps 8 in one Master, one V.I.P. and two Guest Cabins
Accommodation for Crew : Sleeps 6 in 3 Cabins in bow section each with Bathroom + Crew Mess
One Captain’s Cabin in the upper deck behind wheelhouse
40m luxury yacht M Interior
Performance & Main Machinery
Main Engines : 2 x MTU/ Blue Line 16V – 2000/M93 @ 2400hp each @ 2.450 rpm
Gearbox : ZF Gearbox @ 2.5:1 Ratio
Generators : 2 x 70 KW & 1 x 25KW KOHLER Generators @ 380 VAC/50 Hz.
Stabilizer : TRAC 440 – Zero Speed Stabilizers
Thrusters : TRAC Hydraulic Bow & Stern Thrusters
Water Maker : 2 x Sea-Recovery @ 280 lt./hr.
Cruising & Maximum Speed : 17kn – 21kn @ Half Load Condition
Air Conditioning System
350.000 BTU (5x 70.000 btu) Cruise-Air Brand Air-Conditioning & Heating System
Bilgin 132 superyacht M (Project M)
Outfitting General Characteristic
Paint system : Complete AWLGRIP Paint Systems
Classification : RINA CLASS C + Hull • Mach Ych + MMA
Windlasses : Muir VRC 6000 Hydraulic
Capstans : Muir VC 4000 Hydraulic
Anchors : 2x High Holding Type @ 240kg each, Polished Stainless Steel
Chains : 2x 120m Galvanized 18mm caliber
Gangway : Telescopic 3 Stage Opacmare
Salon Door : Stainless Steel framed two wings Electric Door
M Superyacht by Bilgin Yachts
Entertainment System
AMX Custom Designed Entertainment/Automation System
1 x Samsung LE 22 B 650 LED/LCD in Galley 1 x Samsung LE 26 B 450 LED/LCD in Crew Mess
5 x Samsung LE 32 B 7000 LED/LCD in Master, VIP and 3 Guest Cabins
1 x Samsung LE 37 B 450 LED/LCD in Dining Room/Sky-Lounge
1 x Samsung LE 55 B 7000 LED/LCD in Salon 9 x Next HD Satellite Receiver
Bilgin 132 motor yacht M
Galley Appliances
Four Electric Burners
Extractor Hood with Filter
Electric Oven
Microwave
Double Stainless Steel Sink
Garbage Macerator
Garbage Compactor
Dish Washer
Double Refrigerator with Freezer
Wine Cooler & Ice Maker
Walk-in Refrigerator with Freezer
40m luxury motor yacht M (Project M) by Bilgin
Raymarine Navigation Instruments
G170 – 17″ ultra bright marine display x 4
G120 – 12″ marine display x 2
G processor module EU version x 3
G-series command centre keyboard x 3
St2 wireless base station x 1
G-series command centre keyboard – wireless upgrade kit x 1
Dsm30 – digital sounder module x 1
B744vl th brnz, with f/block x 1
Ra1048d – 4kw 48″ hd digital open array x 1
Gvm400 video module x 1
Vcm100 – voltage converter module x 1
Raystar 125 x 2
Sths network switch x 1
Spxsol smart pilot core pack x 1
St70 color autopilot head x 2
Ray-430 loudhailer(disp.) x 1
Intercom speaker RAY430 x 4
Hailing horn x 1
350ci 3.5″ color instrument (st70 instrument display) x 4
St70 depth transducer pod x 1
St70 wind transducer pod x 1
Forward std wind tx x 1
AIS comar B class x 1
Navtex Mc murdo N6 x 1
Multiplexer x 1
Speed Dome LG x 1
Day night camera x 6
Control unit for speed dome x 1
Quad video x 1
Cassen V Plath ZETA Brand x 1
A Class VHF Sailor RT5022 x 1
CU 5000 second station for RT 5022 x 1
VHF antenna 6db x 2
M71 GMDSS handheld VHF x 1
INMARSAT 2030C GMDSS Sailor x 1
KVH M9 Satellite Antenna x 1
Vsat Internet in M9 Dome x 1
